CNC Plasma Cutting Machine 1500*300mm cutting area with high quality 200A China Plasma power supply

  • 1
  • 2

Brand Name : ZHAOZHAN

Model Number : PMCNC-2060/1530

Certification : CCC

Place of Origin : CHINA

MOQ : 1

Payment Terms : T/T, Western Union, MoneyGram, L/C

Supply Ability : 500 sets per month

Delivery Time : 5-8DAYS

Packaging Details : WOODEN CASE

Price : USD3000-5000/set

Control System : CNC Controller

Cooling System : Water Cooling

Cutting Accuracy : High

Cutting Area : 1500-6000mm

Cutting Material : Stainless Steel, Carbon Steel, Aluminum, Copper, etc.

Cutting Speed : High

Cutting Thickness : 0.5-30mm

Dimension : Customized

Drive System : Stepper Motor

Input Current : 20A-200A

Input Frequency : 50/60Hz

Input Power : 220V/380V

Power Source : Plasma Generator

Weight : Customized

Working Environment : Indoor

Contact Now

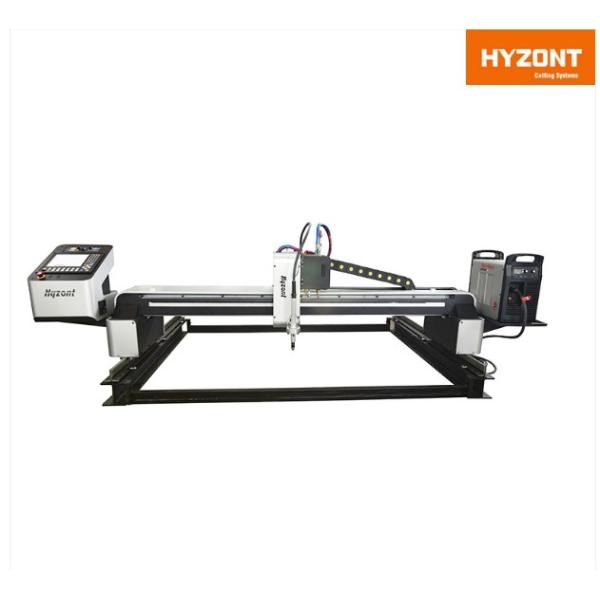

PMCNC Series is a single drive portable CNC cutting machine, which can cut any graphics you need with wide track structure design. Plasma cutting is a kind of processing method that makes use of the heat of high temperature plasma arc to melt (and vaporize) the metal at the cut of workpiece and eliminate the molten metal by the momentum of high speed plasma to form the notch. Flame cutting is used to cut carbon steel by the high temperature generated during the combustion of iron oxide , and the flame cutting torch is designed to provide sufficient oxygen to the combustion iron oxide to ensure a good cutting effect .

CNC Plasma Cutting Machine 1500*300mm cutting area with high quality 200A China Plasma power supply

Model
PMCNC-2560
Power source
machine:AC220V/50hz / palasma cutter: AC380V/50hz
Effective cutting width
2500mm
Effective cutting length
6000mm ( accept tailor-made length)
Cutting thickness(flame)
5-120mm (oxygen+acetylene or propane)
Cutting thickness(plasma)
0.5-40mm Depending on the customer's plasma power supply
Cutting speed
20-3500mm/min (max.4000mm/min)
Cutting accuracy
±0.5m
Line marking accuracy
±0.2mm
Motion accuracy
±0.2mm
Torch lifting distance
≤150mm
Gas pressure
Max 0.1Mpa
Oxygen pressure
Max 0.7Mpa
Applicable gas type
Oxygen and propane or acetylene
Working interface
Chinese and English (other languages can be customized)
Duty cycle
24hours
Working temperature
0~45℃
CAD drawing conversion
nesting cut code StarCAM
Processing Materials
carbon steel, stainless steel, aluminum sheets, galvanized sheets, Titanium plates
